Helical Pier - Round Pipe
This is the primary component of the helical pile system that is driven into the soil first, determining the foundation’s bearing capacity.Helical pier also referred to as helical pile, are built with steel bottoms together with helical flights of different sizes to match the site-specific floor requirements.

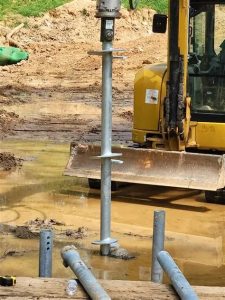

The lead is the first section of a pile driven into the ground. It includes a cutting tip, one or more helical flights, and a connection point. As it rotates, the flight pitch pulls the pile downward like a screw, anchoring it into the soil. This is the primary component of the helical pile system that is driven into the soil first, determining the foundation’s bearing capacity.
We manufacture leads using 80 KSI steel tubing and 107 KSI-rated connections. Flights are plasma-cut and die-formed for consistent pitch and performance. Every lead is checked to meet strict tolerances, with welds completed by certified professionals to reduce soil disturbance and ensure structural integrity.
Extensions are attached after the lead to reach the required depth or torque. Each extension includes a mid-shaft and male/female tool joints for secure stacking.
Advantages :
1. Easy to install and remove
2. Be installed easily in any soil condition
3. Reduces foundation repair costs
4. Easily modified in the field
5. Environmentally friendly
Top Connection Accessories
In addition to the first-stage helical guide rod and extension, helical ground anchors also require top fittings for connecting to above-ground structures.
Check the another catalogy. to find which one you need, or contact Baolai Team, we will introduce one suit for your market.
